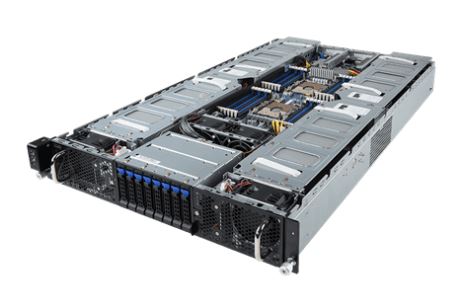

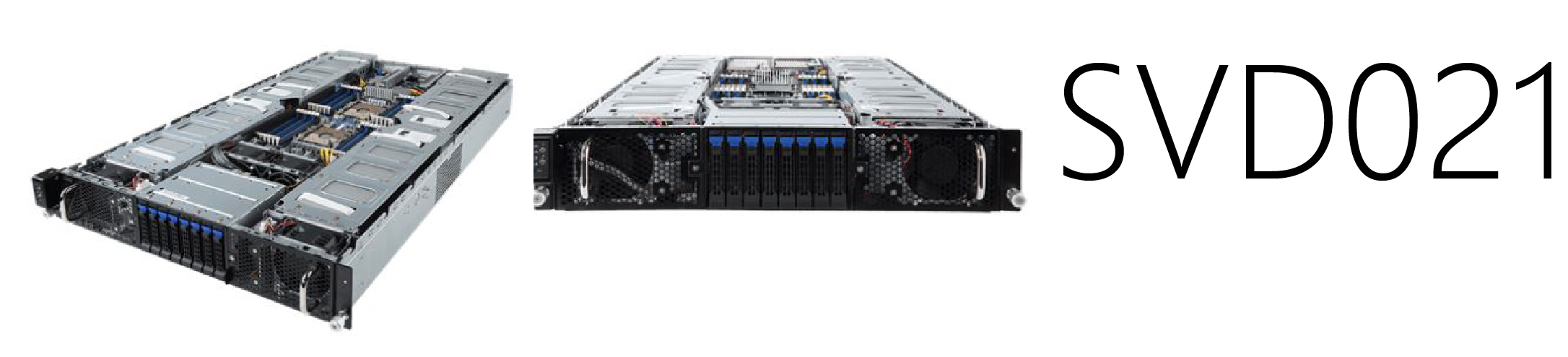

Dimensions (WxHxD, mm)：2U 、

448 x 87.5 x 800

Motherboard：MG51-G21

CPU： 2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors、

Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor

Socket： 2 x LGA 3647、

Socket P、

TDP up to 205W

Chipset： Intel® C621 Express Chipset

Memory： 24 x DIMM slots、

DDR4 memory supported only、

6-channel memory architecture、

RDIMM modules up to 64GB supported、

LRDIMM modules up to 128GB supported、

Supports Intel® Optane™ DC Persistent Memory (DCPMM)、

1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz、

Maximum verified DCPMM configuration:

* Ambient temperature 35°C

* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)

* DCPMM 128GB x6 pcs

DCPMM installation locations:

DIMM_P1_( G1, H1, I1)、

DIMM_P1_( J1, K1, L1)

NOTE:

1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only

2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only

3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C

4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative

LAN： 2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)、

1 x 10/100/1000 management LAN

Video： Integrated in Aspeed® AST2500、

2D Video Graphic Adapter with PCIe bus interface、

1920x1200@60Hz 32bpp, DDR4 SDRAM

Storage： 8 x 2.5" hot-swappable HDD/SSD bays、

SAS card is required for SAS devices support

SATA： 1 x 7-pin SATA III 6Gb/s with SATA DOM supported、

By using pin_8 or external cable for power function

SAS： Supported via add-on SAS Card

RAID： Intel® SATA RAID 0/1/10/5

Expansion Slots： 16 x PCIe x16 slots (Gen3 x16 bus) for GPUs、

2 x PCIe x16 (Gen3 x16 bus) Half-length low-profile slots、

OCP type add-on card as an option、

- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)

- System is validated for population with a uniform GPU model

- Support is not provided for mixed GPU populations

Internal I/O： 1 x 18-pin power connector、1 x 14-pin power connector、

2 x 8-pin power connectors、2 x 4-pin power connectors、

1 x USB 3.0 header、1 x TPM header、1 x VROC connector、

1 x HDD back plane board header、

1 x 12-pin front panel header、1 x 23-pin front panel header、

1 x JTAG header、2 x SATA SGPIO headers、

1 x Front VGA header、1 x Serial header、1 x IPMB connector、

1 x P12V standby connector、1 x PMBus selection jumper、

1 x Clear CMOS jumper、1 x LT debug jumper

Front I/O： 1 x Power button with LED、1 x ID button with LED、

2 x LAN activity LEDs、1 x HDD activity LED、

1 x System status LED、1 x Reset button

Rear I/O： 2 x USB 3.0、1 x VGA、2 x RJ45、1 x MLAN、

1 x Power button with LED、1 x ID button with LED、

1 x Reset button、1 x NMI button、1 x System status LED

Backplane I/O： 8 x SAS/SATA ports、

Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port、

SAS card is required for SAS devices support

TPM： 1 x TPM header with SPI interface

Power： Supply 2 x 2200W redundant PSUs

System Management： Aspeed® AST2500 management controller、

Avocent® MergePoint IPMI 2.0 web interface:

Network settings、

Network security settings、

Hardware information、

Users control、

Services settings、

IPMI settings、

Sessions control、

LDAP settings、

Power control、

Fan profiles、

Voltages, fans and temperatures monitoring、

System event log、

Events management (platform events, trap settings, email settings)、

Serial Over LAN、

vKVM & vMedia (HTML5)

OS Supported： For Skylake processors:

Windows Server 2012 R2 with Update、

Windows Server 2016、

Windows Server 2019、

Red Hat Enterprise Linux 6.9 (x64) or later、

Red Hat Enterprise Linux 7.3 (x64) or later、

Red Hat Enterprise Linux 8.0 (x64) or later、

SUSE Linux Enterprise Server 11.4 (x64) or later、

SUSE Linux Enterprise Server 12.2 (x64) or later、

SUSE Linux Enterprise Server 15 (x64) or later、

Ubuntu 16.04.1 LTS (x64) or later、

Ubuntu 18.04 LTS (x64) or later、

VMware ESXi 6.0 Update3 or later、

VMware ESXi 6.5 or later、

VMware ESXi 6.7 or later、

Citrix Xenserver 7.1.0 CU2 or later、

Citrix Xenserver 7.4.0 or later、

Citrix Hypervisor 8.0.0、

For Cascade Lake processors:

Windows Server 2012 R2 with Update、

Windows Server 2016、

Windows Server 2019、

Red Hat Enterprise Linux 7.6 (x64) or later、

Red Hat Enterprise Linux 8.0 (x64) or later、

SUSE Linux Enterprise Server 12.3 (x64) or later、

SUSE Linux Enterprise Server 15 (x64) or later、

Ubuntu 18.04 LTS (x64) or later、

VMware ESXi 6.0 Update3 or later、

VMware ESXi 6.5 Update2 or later、

VMware ESXi 6.7 Update1 or later、

Citrix Xenserver 7.1.0 CU2 or later、

Citrix Xenserver 7.5.0 or later、

Citrix Hypervisor 8.0.0

Weight： Net Weight: 30 kg、

Gross Weight: 36 kg

System Fans： 8 x 80x80x38mm (16300rpm)

Operating Properties： Operating temperature: 10°C to 35°C、

Operating humidity: 8%-80% (non-condensing)、

Non-operating temperature: -40°C to 60°C、

Non-operating humidity: 20%-95% (non-condensing)

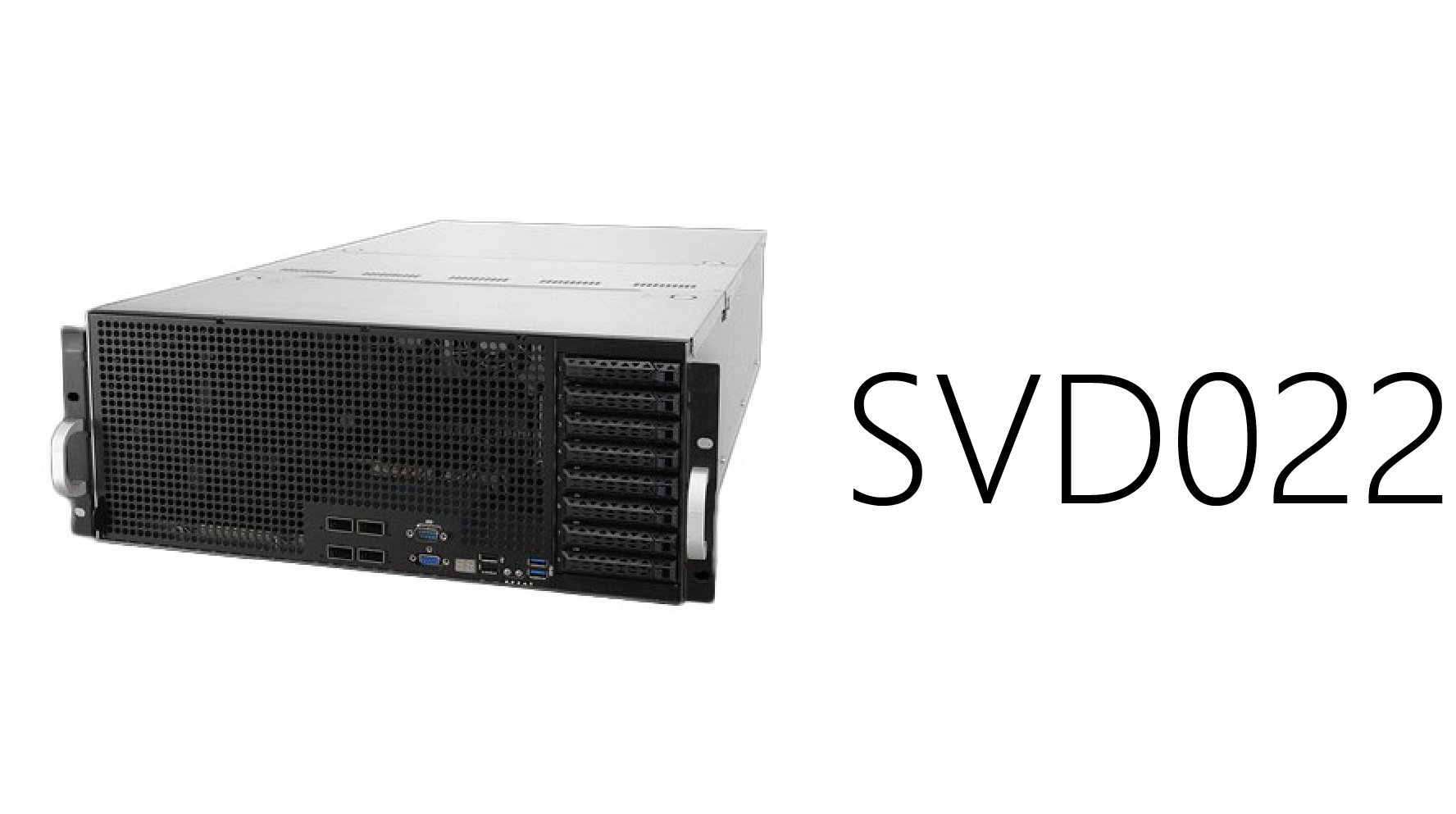

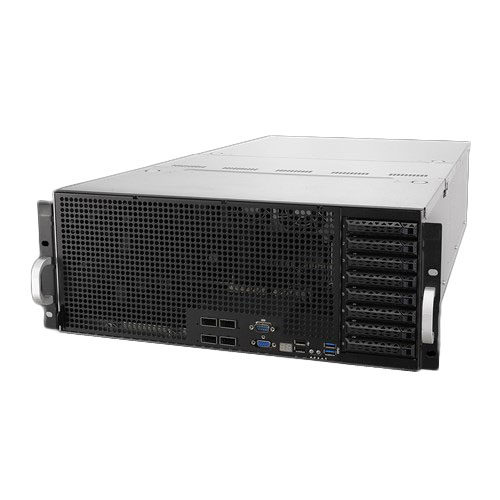

中央處理器： 2 x Socket P (LGA 3647)、

1st and 2nd Gen Xeon® Scalable Processor Family

核心晶片組： Intel® Lewisburg PCH C621

記憶體： 總 Slots 數 : 24 (6-channel per CPU, 12 DIMM per CPU)

總容量 : 最大至 3072GB RDIMM

記憶體類型 :

DDR4 2933/2666/2400 /2133 RDIMM、

DDR4 2933/2666/2400 /2133 LRDIMM、

DDR4 2933/2666/2400 /2133 LR-DIMM 3DS、

DDR4 Intel® Optane™ DC Persistent Memory

記憶體大小:

64GB, 32GB, 16GB RDIMM、

128GB, 64GB, 32GB LRDIMM、

128GB, 64GB LR-DIMM 3DS

擴充槽： Full-length/Full-height、

8 x PCI-E x16 (Gen3 x16 link) , FH, FL、

Half-length/Low-profile

Rear:

Dual root topology: 2 x PCI-E x16 (Gen3 x 16 link), LP, HL

or

Single root topology: 1 X PCI-E x16 (Gen3 x16 link), LP, HL

Front:

1 x PCI-E x8 (Gen3 x8 link) , LP, HL

資料儲存應用： SATA 控制器: Intel® C621、

8 x SATA3 6Gb/s ports + 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link 22110/2280/2260)

or

6 x SATA3 6Gb/s ports + 2 x NVMe drives + 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link 22110/2280/2260)、

Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)

(Support Software RAID 0, 1, 5, 10 )、

Intel®VROC (For Linux/Windows)

(Support Software RAID 0/1 )、

SAS Controller :

ASUS PIKE II 3008 8-port SAS HBA card、

ASUS PIKE II 3108 8-port SAS HW RAID card、

12G SAS Support

支援的磁碟機： 8 x Hot-swap 2.5" HDD Bays

網路功能： 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN

顯示晶片： Aspeed AST2500 with 64MB VRAM

前面板輸出端子： 2 x USB 3.0 ports、

2 x USB 2.0 ports、

1 x VGA port、

1 x COM port、

Rear I/O Ports、

2 x RJ-45 GbE LAN ports、

1 x RJ-45 Mgmt LAN port、

Switch/LED、

Front Switch/LED:

1 x Q-Code/Port 80 LED、

1 x Power switch/LED、

1 x Location switch/LED、

1 x HDD Access LED、

1 x Message LED、

Front Switch/LED:

1 x Q-Code/Port 80 LED、

1 x Power switch/LED、

1 x Location switch/LED、

1 x HDD Access LED、

1 x Message LED、

2 x LAN LED

作業系統支援： Please find the latest OS support from http://www.asus.com/

管理工具： ACC、

On-Board ASMB9-iKVM for KVM-over-IP

Regulatory Compliance： BSMI, CE, FCC(Class A)

產品尺寸： 798mm x 439mm x 175.6mm

主機板尺寸： 4U

電源規格： 2+1 Redundant 1600W 80PLUS Platinum Power Supply;

100-127 / 200-240Vac, 12.9 / 9.5A（for each inlet）, 47-63Hz, Class I

運作環境： Operation temperature: 10℃ ~ 35℃、

Non operation temperature: -40℃ ~ 70℃、

Non operation humidity: 20% ~ 90% ( Non condensing)

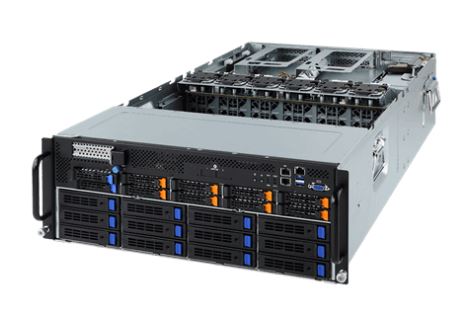

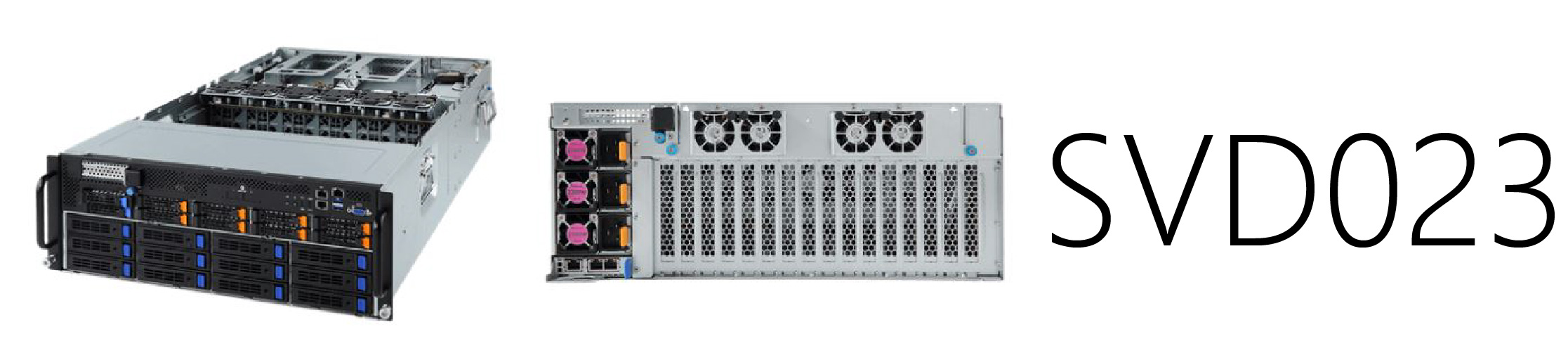

Dimensions (WxHxD, mm)： 4U、

448 x 176 x 880

Motherboard： MG61-G40

CPU： 2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors、

Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor、

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Socket： 2 x LGA 3647、

Socket P、

TDP up to 205W

Chipset： Intel® C621 Express Chipset

Memory： 24 x DIMM slots、

DDR4 memory supported only、

6-channel memory architecture、

RDIMM modules up to 64GB supported、

LRDIMM modules up to 128GB supported、

Supports Intel® Optane™ DC Persistent Memory (DCPMM)、

1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz、

Maximum verified DCPMM configuration:

* Ambient temperature 35°C

* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)

* DCPMM 256GB x12 pcs

DCPMM installation locations:

DIMM_P0_( A1, B1, C1)、

DIMM_P0_( D1, E1, F1)、

DIMM_P1_( G1, H1, I1)、

DIMM_P1_( J1, K1, L1)

NOTE:

1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only

2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only

3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C

4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative

LAN： Rear Side:

2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)、

1 x 10/100/1000 management LAN

Front Side:

2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)

* 4 x QSFP28 LAN ports with Intel® Omni-Path Host Fabric Interface (as an option)

- Provides 25Gb/s bandwidth per port, total 100Gb/s bandwidth with 4 QSFP28 LAN ports

* NOTE: Please select Intel® Xeon processors with Omni-Path Architecture to enable Intel® Omni-Path Host Fabric Interface

Video： Integrated in Aspeed® AST2500、

2D Video Graphic Adapter with PCIe bus interface、

1920x1200@60Hz 32bpp, DDR4 SDRAM

Storage： 12 x 3.5" hot-swappable HDD/SSD bays

- Compatible with SATA/SAS devices only、

10 x 2.5" hot-swappable HDD/SSD bays

- 8 x amber HDD trays compatible with NVMe or SATA/SAS devices

- 2 x blue HDD trays compatible with SATA/SAS devices only

Pre-install with Broadcom SAS3008 storage adapter with IR mode and expander board、

Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port

SATA： Supported

SAS： Supported

RAID： For SATA/SAS drives:

Pre installed Broadcom SAS3008 SAS Card、

Software RAID, IR mode

For NVMe drives:

Intel® Virtual RAID On CPU (VROC) RAID 0, 1

Note: VROC module is compatible for Intel®SSD only

Expansion Slots： 10 x PCIe x16 slots (Gen3 x16 bus) for GPUs、

1 x PCIe x16 (Gen3 x8 bus) Half-length low-profile slot in front, occupied by CRA3338 HBA、

1 x PCIe x16 (Gen3 x16 bus) Half-length low-profile slot at rear

- System is validated for population with a uniform GPU model

- Support is not provided for mixed GPU populations

Internal I/O： 1 x TPM header、

1 x VROC connector、

1 x Front VGA header、

1 x Serial header

Front I/O： 2 x USB 3.0、

1 x VGA、

2 x RJ45、

1 x MLAN (Reserved, enabled by cable switch)、

4 x Omni-Path QSFP28 LAN ports (Reserved)、

1 x Power button with LED、

1 x ID button with LED、

1 x Reset button、

1 x NMI button、

1 x System status LED、

1 x HDD access LED、

1 x Omni-Path activity LED

Rear I/O： 2 x RJ45、

1 x MLAN (Primary port)

Backplane I/O： 12 x 3.5" ports and 10 x 2.5" ports

TPM： 1 x TPM header with SPI interface

Power Supply： 3 x 2200W redundant PSUs

System Management： Aspeed® AST2500 management controller、

Avocent® MergePoint IPMI 2.0 web interface:

Network settings、

Network security settings、

Hardware information、

Users control、

Services settings、

IPMI settings、

Sessions control、

LDAP settings、

Power control、

Fan profiles、

Voltages, fans and temperatures monitoring、

System event log、

Events management (platform events, trap settings, email settings)、

Serial Over LAN、

vKVM & vMedia (HTML5)

OS Supported： For Skylake processors:

Windows Server 2012 R2 with Update、

Windows Server 2016、

Windows Server 2019、

Red Hat Enterprise Linux 6.9 (x64) or later、

Red Hat Enterprise Linux 7.3 (x64) or later、

Red Hat Enterprise Linux 8.0 (x64) or later、

SUSE Linux Enterprise Server 11.4 (x64) or later、

SUSE Linux Enterprise Server 12.2 (x64) or later、

SUSE Linux Enterprise Server 15 (x64) or later、

Ubuntu 16.04.1 LTS (x64) or later、

Ubuntu 18.04 LTS (x64) or later、

VMware ESXi 6.0 Update3 or later、

VMware ESXi 6.5 or later、

VMware ESXi 6.7 or later、

Citrix Xenserver 7.1.0 CU2 or later、

Citrix Xenserver 7.4.0 or later、

Citrix Hypervisor 8.0.0、

For Cascade Lake processors:

Windows Server 2012 R2 with Update、

Windows Server 2016、

Windows Server 2019、

Red Hat Enterprise Linux 7.6 (x64) or later、

Red Hat Enterprise Linux 8.0 (x64) or later、

SUSE Linux Enterprise Server 12.3 (x64) or later、

SUSE Linux Enterprise Server 15 (x64) or later、

Ubuntu 18.04 LTS (x64) or later、

VMware ESXi 6.0 Update3 or later、

VMware ESXi 6.5 Update2 or later、

VMware ESXi 6.7 Update1 or later、

Citrix Xenserver 7.1.0 CU2 or later、

Citrix Xenserver 7.5.0 or later、

Citrix Hypervisor 8.0.0

Weight： Net Weight: 39 kg、

Gross Weight: 58.1 kg

System Fans： 4 x 40x40x28mm (25000rpm)、

12 x 60x60x38mm (23000rpm)

Operating Properties： Operating temperature: 10°C to 35°C、

Operating humidity: 8%-80% (non-condensing)、

Non-operating temperature: -40°C to 60°C、

Non-operating humidity: 20%-95% (non-condensing)

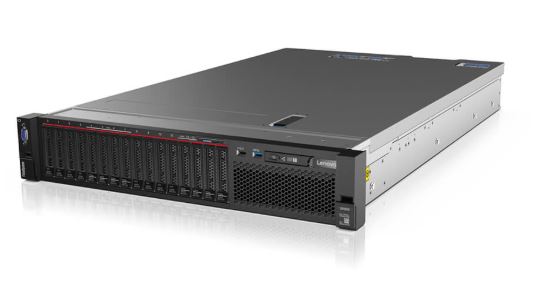

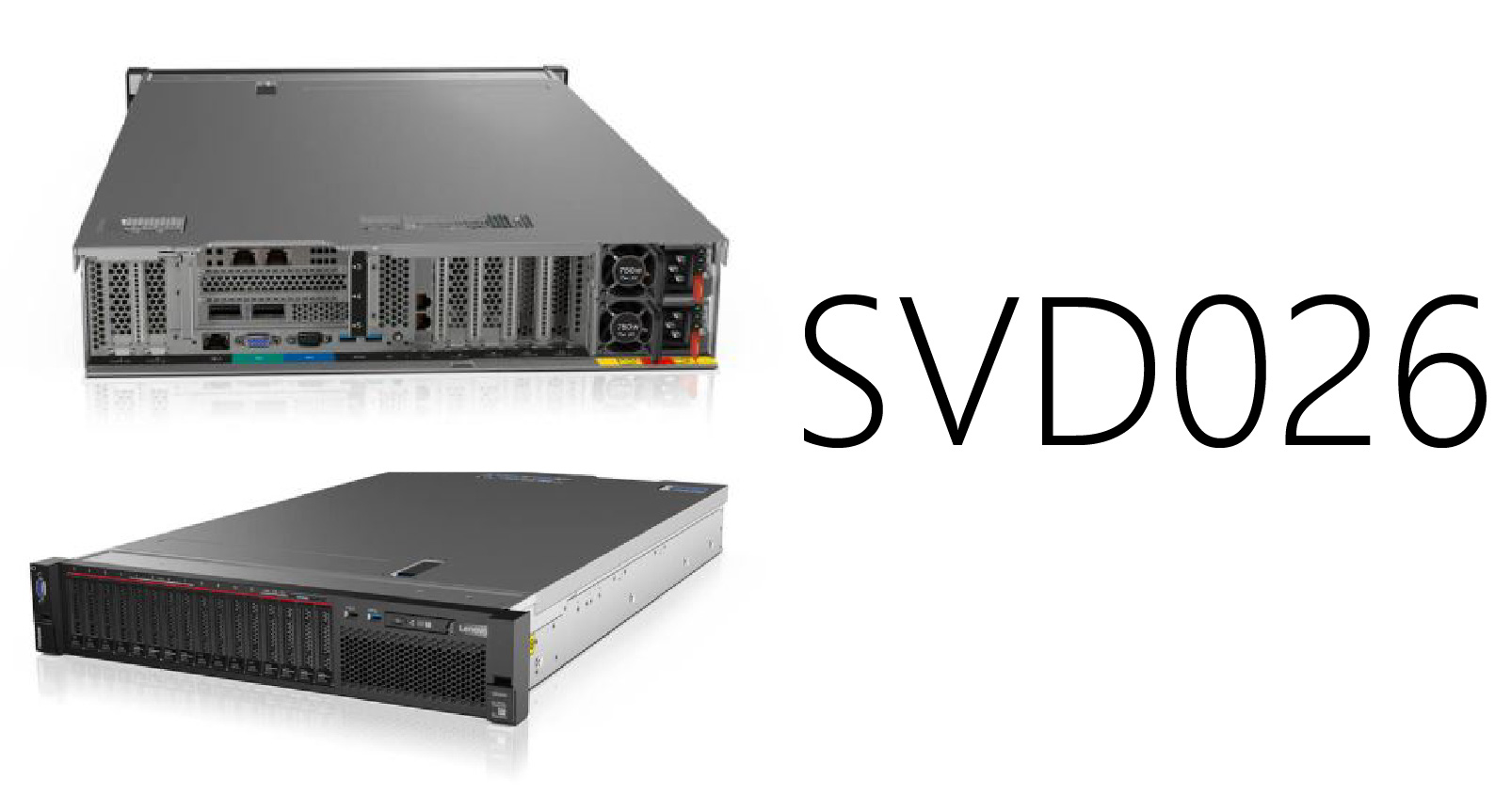

外型尺寸/高度： 2U 機架式伺服器

處理器 (最大值)： 2 或 4 個第二代 Intel® Xeon® Processor Scalable 系列，多達 165W

記憶體 (最大值)： 使用 128GB DIMM 時，48 個插槽可提供高達 6TB；

2666MHz / 2933MHz TruDDR4

擴充插槽： 多達 9 個 PCIe 和 1 個 LOM；選用的 1 個 ML2 插槽

內部儲存裝置： 多達 16 個 2.5 吋儲存機槽，支援 SAS/SATA HDD 及 SSD 或多達 8 個 2.5 吋 NVMe SSD；

還有多達 2 個鏡像 M.2 開機

網路介面： 具備 1GbE、10GbE、25GbE、32GbE、40GbE 或 InfiniBand PCIe 介面卡的多個選項；

一個 (雙連接埠/四連接埠) 1GbE 或 10GbE LOM 記憶卡

電源供應器 (標準值/最大值)： 2 個熱抽換/備援：750W/1100W/1600W AC 80 PLUS Platinum

安全性及可用性功能： Lenovo ThinkShield，TPM 1.2/2.0；PFA；

熱抽換式/備援磁碟機、風扇及 PSU；

內部光徑診斷 LED；

透過專屬 USB 連接埠進行前端存取診斷；

診斷 LCD 面板

RAID 支援： HW RAID (多達 16 個連接埠) 和快取記憶體，多達 16 個連接埠 HBA

系統管理： XClarity Controller 內嵌管理、

XClarity Administrator 集中化基礎架構交付、

XClarity Integrator 外掛程式及 XClarity Energy Manager 集中化伺服器電源管理

支援的作業系統： Microsoft Windows Server、RHEL、SLES、VMware vSphere

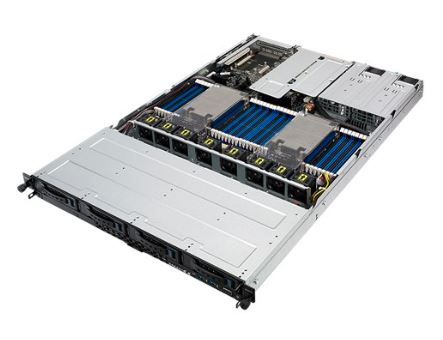

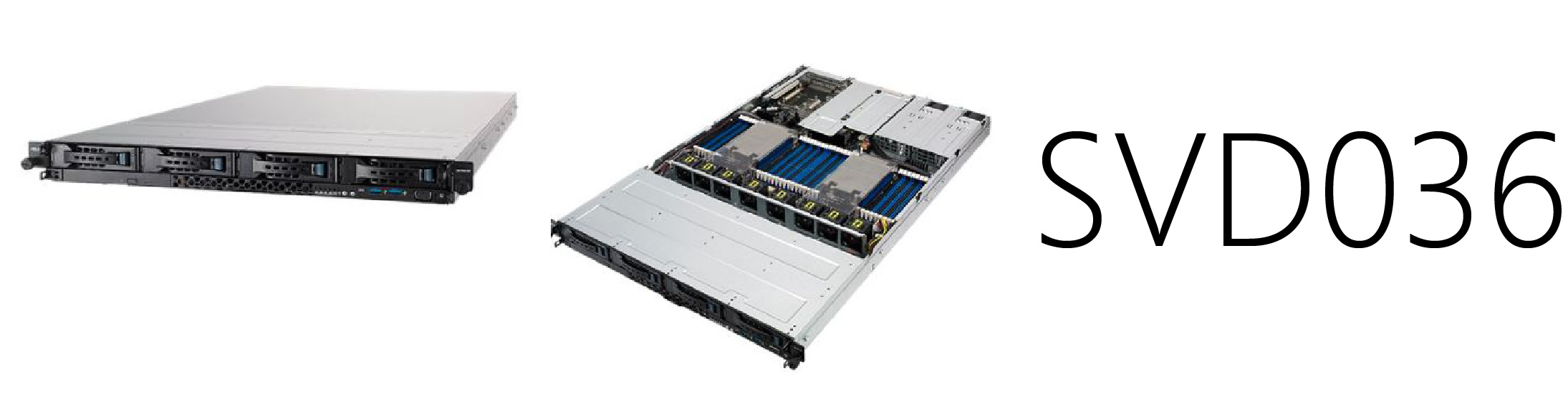

中央處理器： AMD EPYC™ 7000 Series

記憶體： 總 Slots 數 : 32 (8-channel per CPU, 16 DIMM per CPU)、

總容量 : 最大至 2048GB LRDIMM、

記憶體類型 :

DDR4 2666/2400 RDIMM、

DDR4 2666/2400 LRDIMM

資料儲存應用：

SATA 控制器: 10 x SATA3 6Gb/s 連接埠、

2 x M.2 connector (SATA 6Gb/s & PCI-E Gen3 x4 link)、

SAS Controller :

ASUS PIKE II 3008 8-port SAS HBA card、

ASUS PIKE II 3108 8-port SAS HW RAID card、

12G SAS Support

支援的磁碟機： 24 x 2.5" Hot-swap HDD Bays

網路功能： 1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN

顯示晶片： Aspeed AST2500 with 16MB VRAM

前面板輸出端子： 2 x USB 2.0 ports

Rear I/O Ports： 2 x USB 3.0 ports、

1 x VGA port、

2 x RJ-45 GbE LAN ports、

1 x RJ-45 Mgmt LAN port

Switch/LED： Rear Switch/LED:

1 x Q-Code/Port 80 LED、

1 x Power switch

Front Switch/LED:

1 x Power switch/LED、

1 x Location switch/LED、

1 x Reset switch、

1 x HDD Access LED、

1 x Message LED、

LAN 1-4 LED

* LAN3-4 for Mezzazine card use

作業系統支援： Windows® Server 2016、

Windows® Server 2012 R2、

SUSE® Linux Enterprise Server、

RedHat® Enterprise Linux、

CentOS、

Ubuntu、

VMware、

Citrix XenServer

管理工具： ASUS Control Center、

On-Board ASMB9-iKVM for KVM-over-IP

產品尺寸： 750mm x 444mm x 88mm(2U)、

29.52" x 17.48" x 3.46"

電源規格： 1+1 Redundant 800W/1200W 80 PLUS Platinum Power Supply、

Rating: 100-127Vac/200-240Vac,10A/5A ,50/60Hz, Class I

運作環境： Operation temperature: 10℃ ~ 35℃、

Non operation temperature: -40℃ ~ 70℃、

Non operation humidity: 20% ~ 90% ( Non condensing)
